RM160.00

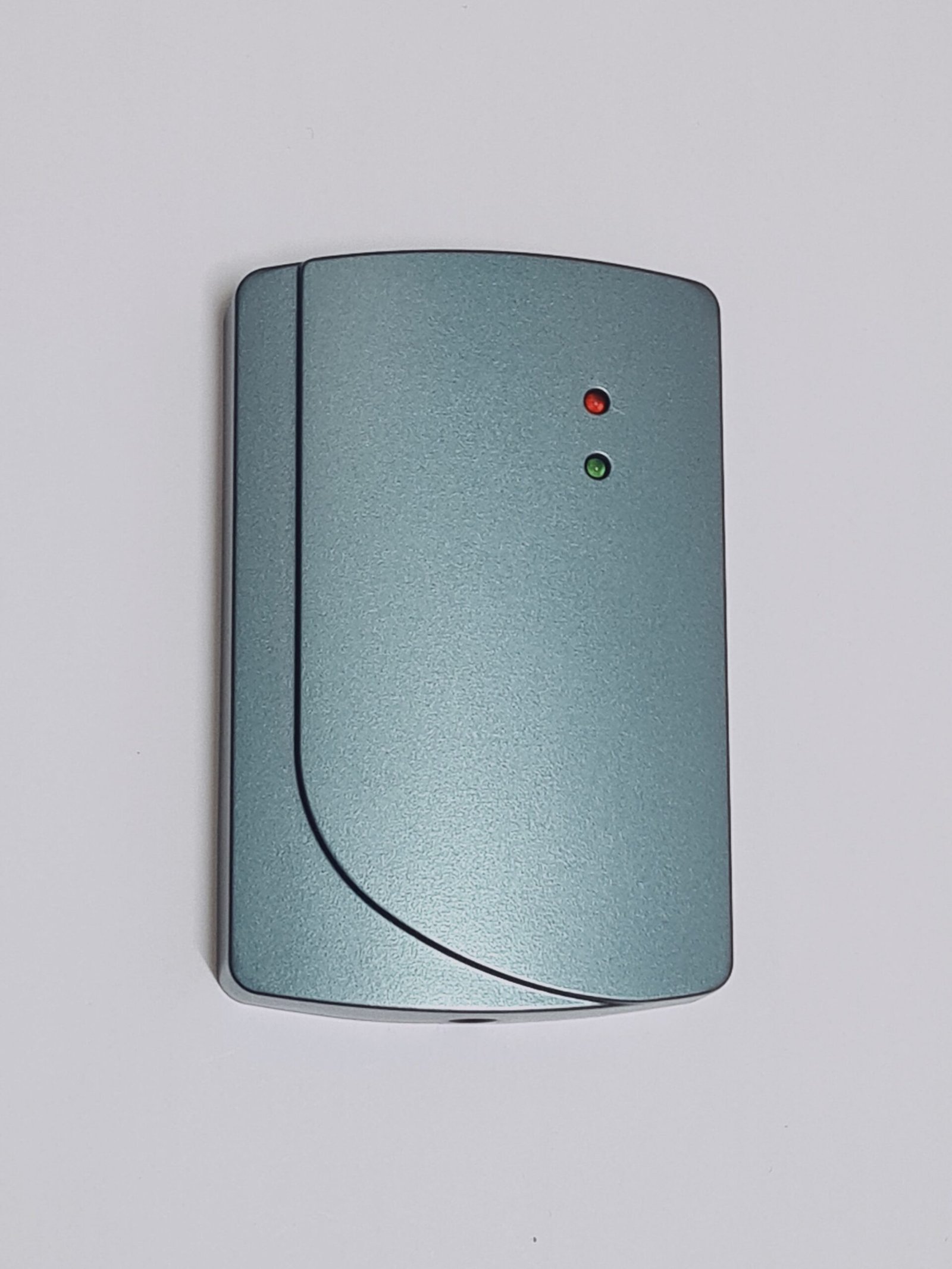

This serial Mifare Reader can be configured to work in Read/Write mode or Auto Read Card Serial Number mode via the software. In the Auto Read SNR mode, it will return the Card SNR to Host either in Hex or Decimal format. In the Read/Write mode, it access card after receiving command sent from Host. It has both RS485 and RS232 on board for greater application range. Supports CPU and memory card in the Mifare family, especially the Desfire, Plus and Mifare Standard. Experience is not necessary as step by step guide is outlined in the manual. Full SDK is available for easy software development.
Availability: 19 in stock
| Quantity | Discount | Discounted price |
| 1 | - | RM200.00 |
| 2 - 10 | 5% | RM190.00 |
| 11 - 100 | 10% | RM180.00 |
| 101 - 1000 | 15% | RM170.00 |
1. Support ISO14443A card type : Classic (S50/S70), Plus (EV1), Desfire (EV1, EV2), Ultralight (EV1),
2. Read Serial Number mode or Read/Write Mode, configurable via software,
3. Include Roll Key and DAM (Desfire), MixedMode (Plus),
4. RS232 and RS485,

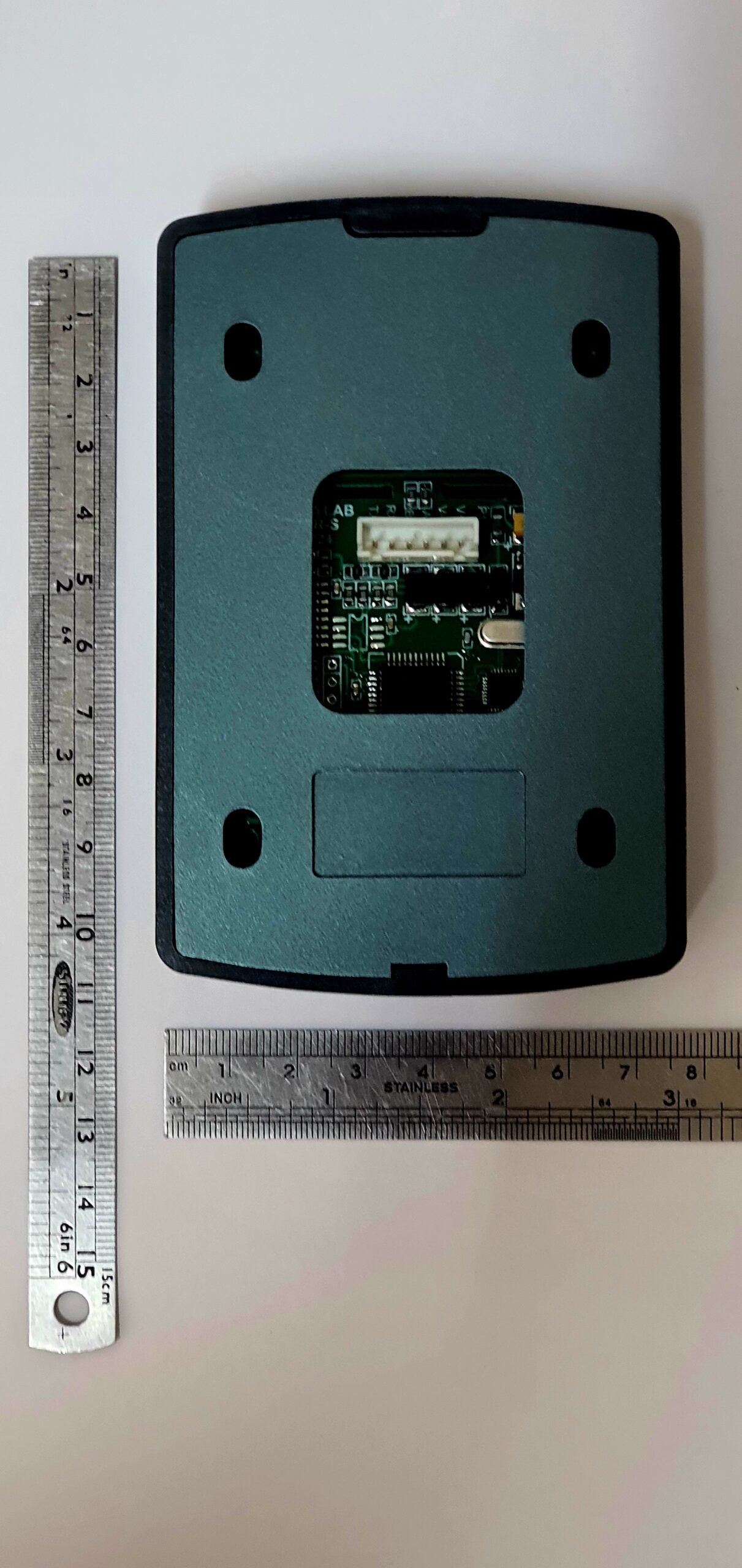

5. Dimension : 11.5 cm x 7.5 cm x 2.0 cm
6. Manual and Software can be downloaded from Web,
7. Customization available.
| Weight | 75 g |
|---|---|
| Dimensions | 16.5 × 9.0 × 3.0 cm |
| Brand | mylab.my |
| Card type | Desfire, Mifare, Plus, Classic, Ultralight, RFID |
